How to Install AUXITO Q16 Series H11 LED Headlight Bulbs

INTRODUCTION

As a popular choice for upgrading headlights, understanding the installation steps of led bulbs is helpful to upgrade your vehicle's lighting system correctly and quickly, and enjoy better safety and wonderful driving experience! Today, we have selected AUXITO Q16-H11 LED Bulbs as our installation target to explain, and before we explain the installation steps in detail, we can watch the installation video and understand the characteristics of the Q16 series product specifications.

PRODUCT DESCRIPTION

SPECS

  • LUMEN: 20,000lm/set
  • POWER: 100w per set
  • LIGHT COLOR: 6000K (Xenon White)
  • IP RATING: 67
  • LONGEVITY: over 50,000 hours
AUXITO Q16 series LED bulbs

      AUXITO Q16 series LED bulbs adopt 1:1 beam pattern technology and 0.039-inch ultra-thin substrate, which concentrates the beam on a farther road without dazzling oncoming vehicles and has a clear cut-off line. And there is a turbo active fan at the bottom of the bulb, which keeps the light cool and prevents overheating, so that the LED bulb lasts longer. Besides, the AUXITO Q16-H11 LED bulbs adopt a plug-in wireless design, which can be completed simply by plugging it in. Below are its specifications.

      One thing to note is the Auxito Q16-H11 bulb has a large bottom fan design, so there will be a small chance that the dust cover you would have used will not fit. If you don't want to replace the original dust cover or won't accept installing a bulb without one, we recommend the M3 series to address these concerns. This series has a more compact design, almost 1:1 the size of a halogen lamp.

      Overall, Q16-H11 LED bulbs are compatible with 99% of vehicle systems, which can be used as a priority for upgrading headlights.

      Now, let's start today's AUXITO Q16-H11 LED Bulbs installation tutorial.

      AUXITO Q16 SERIES H11 LED BULBS INSTALLATION

      • Preparations

      Before installing the bulb, you can do the following preparations.

      1. Prepare tools: You may need to prepare a pair of gloves (included in the AUXITO box), screwdriver and other tools to facilitate the installation process.
      2. Understand the installation steps: Before installation, please read the installation guide of AUXITO Q16 series headlight bulbs carefully. Familiar with and understand the installation steps to ensure correct and error-free installation.
      H11 LED BULBS INSTALLATION
      • Step By Step Installation

      After doing the above preparations, we started the three-step installation.

      Step 1: Removing the old bulb

      Open the hood of the car, find the location of the replaced bulb and peel off the round dust cover (if you have).

      H11 LED BULBS INSTALLATION

      Then by rotating counter clockwise to loosen it and remove the old bulb.

      H11 LED BULBS INSTALLATION

      Finally Unplug wire harness.

      H11 LED BULBS INSTALLATION

      Step 2: LED headlight bulb installation

      First connect the LED bulb to the plug, during this process, you will hear a "click" to indicate successful insertion.

      H11 LED BULBS INSTALLATION

      Then find the correct correspondence and align the dimples on the insertion port before inserting.

      H11 LED BULBS INSTALLATION

      While pressing down the led bulb, turn it clockwise until it locks in place.

      H11 LED BULBS INSTALLATION

      Finally, install the LED bulb chip at 9 o'clock and 3 o'clock to ensure the correct beam pattern is displayed.

      H11 LED BULBS INSTALLATION

      (Warm Tip: If you want to know more about adjusting headlight beam patterns, please read HEADLIGHT ADJUSTMENT AIMING WALL CHART)

      Step 3: Power test and put the dust cover back (if you have).

      After following the above installation steps, congratulations on completing the bulb installation.

      • Precautions

      Here are some precautions that you need to pay special attention to installation process.

      1. Always perform above operation when vehicle is off, not running.
      2. Check the installation position of the car light: Before installation, you need to check the installation position of the car light to ensure that it matches the front of the car and there are no obstacles around.
      3. Wearing gloves is ideal when dealing with the bulb. If ever it gets in contact with any contaminents, simply wipe the bulb with rubbing alcohol and a dry cloth.
      4. Never look directly at the LED bulb as the light emitted may be very bright and could damage your eyes.
      5. Do not attempt to disassemble the bulb or any part of it - please contact us if you suspect any problem with the product.
      6. Our products must stay away from any kind of flammable content such as Diluting Agents, Spray Paint, Paper, Oil, and so on.
      7. Never adjust your LED lights to point upwards because you might diminish the visibility of other drivers on the road.

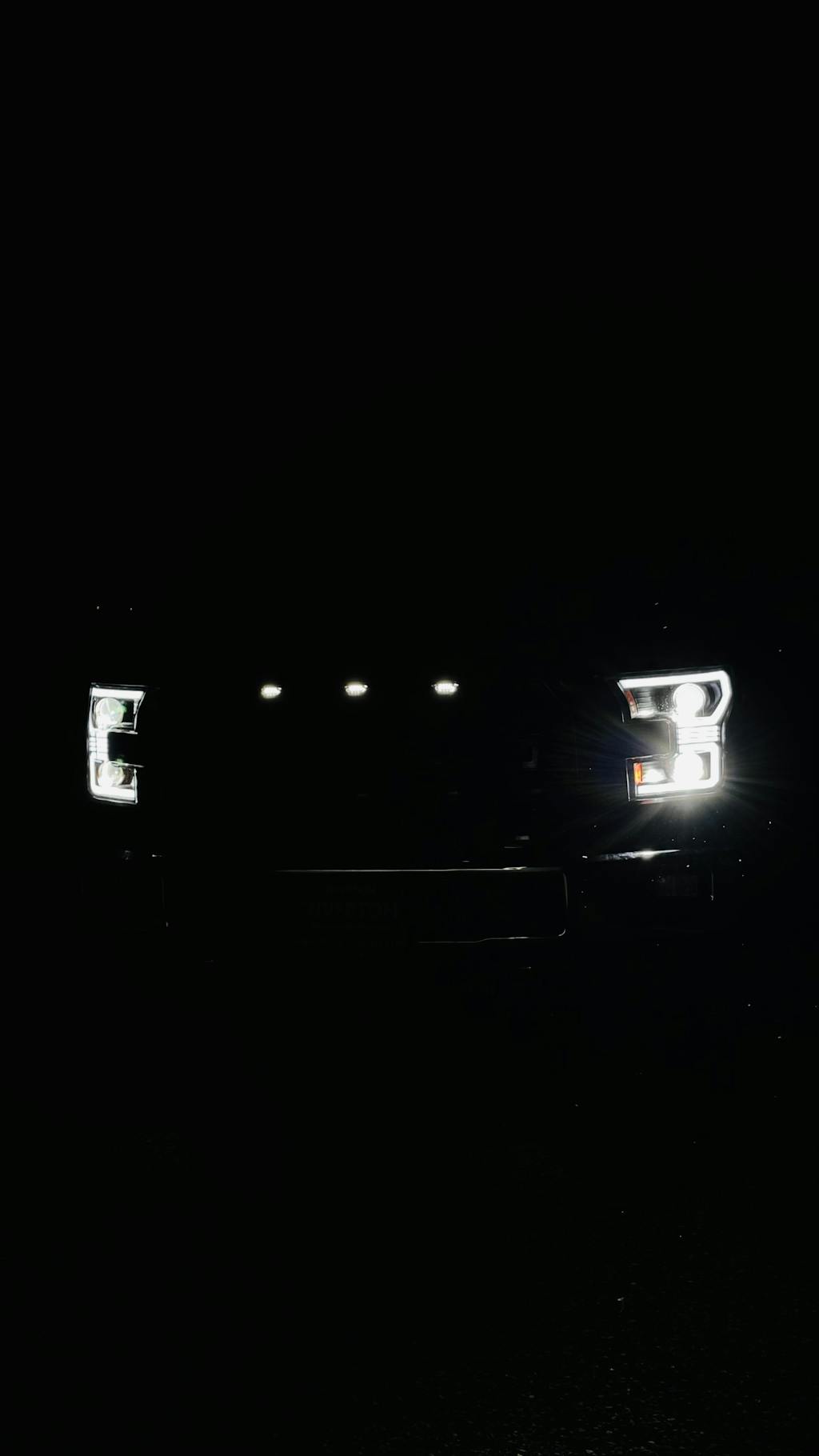

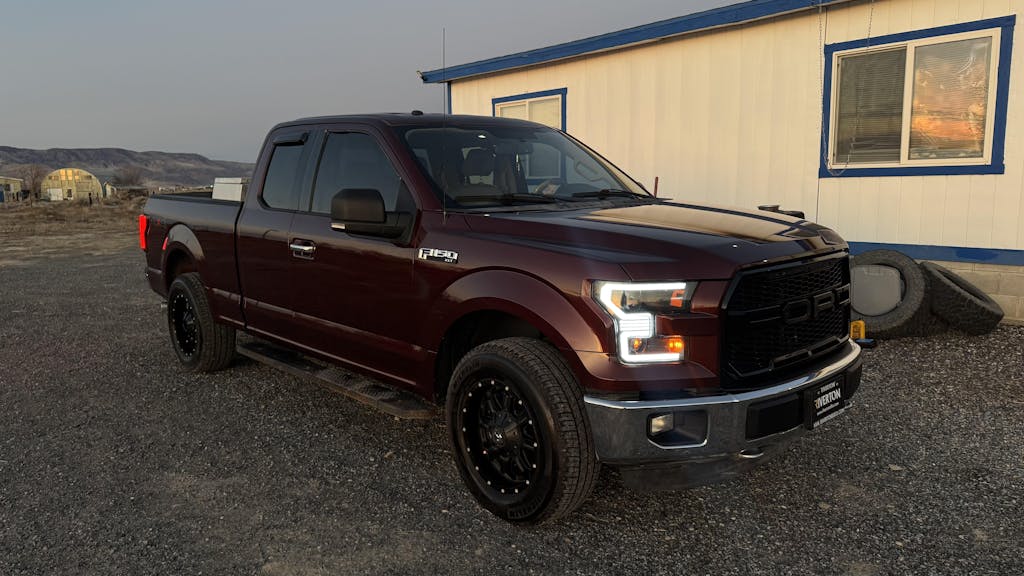

      (The following are the effect pictures after installation)
      LED Headlight Bulbs
      LED Headlight Bulbs
      LED Headlight Bulbs
      LED Headlight Bulbs

      CONCLUSION

      Anyway, please follow the installation steps above or follow the instructions in the manual to install the bulbs properly. Be safe and test properly to ensure your lights are working properly and with high-quality lighting.

      FAQ

      Q: Flickering or dashboard error occurred after installation?

      A: AUXITO Q16-H11LED bulbs are compatible with 99% of vehicle systems and are built with smart IC drivers and a high wattage approaching that of ordinary light bulbs, making them a reliable, efficient upgrade. The bulb is designed to support CANbus and is error-free, but there may be flickering and dashboard error when installing LED headlight bulbs on some sensitive models, so it is recommended to use the H11 LED CANbus decoder to solve this problem.

      Q: I do see some brands comes without fan - what is the difference between the headlights with and without fan - Pros and cons?
      A: The heat dissipation would be better with fan, so it can reach higher brightness. The lifespan would be longer without fan since it won't have fan defective hassles.

      Q: Are these bulbs same as halogen bulbs? How can I install it?

      A: AUXITO Q16 series H11 LED bulbs are 1:1 design with halogen bulbs, it's easy to install and just plug and play. Any problem during use and install can contact us, we will help you solve it.

      Q: Are these coded left/right or can either one be installed on either side?

      A: They can be installed on either side

      Q: Can I install this type of H11 bulbs without modifying the electrical system, the system is designed for 55W and these are 100W.

      A: Yes, you can install this type of H11 bulbs without modifying the electrical system. The bulb is 50W per bulb.

      Q: The bulb model I bought is different from my OEM halogen lamp, can it be replaced?

      A: If this happens, it may be that the Filter system on the official website is not 100% correct or your LED bulbs assembly is not an OEM part. Please double check the model number of your OEM halogen bulb and contact our after-sales customer service to solve related problems.

      Q: Are these installation side specific…drivers side and passenger bulbs?

      A: No they're not.

      Q: How do I know i need this kind bulbs?

      A: There is a Filters query function on the Auxito.com website, you only need to enter the relevant information, the specific operation is as follows.

      • In the navigation bar, after selecting the corresponding information in order, the search results will display the corresponding products.
      Bulb finder
      Bulb finder

      • By Vehicle: By querying a specific car model, you can find all product links of the car model, and then find the product page that needs to be purchased.
      Bulb finder
      Bulb finder

      For more operation details, please check our Bulb Finder.
